ASRS MHS Roller Pallet Conveyor Grounding Roller Lifter Multiple Lines
| Place of Origin | China |
|---|---|
| Brand Name | Kinte |
| Certification | ISO9001/FEM/ISO14001/OHSAS 18001 |
| Model Number | Customized |
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | Packed with plastic films and wrap with strips |
| Delivery Time | According to customer's requirement |
| Payment Terms | Negotiable |
| Supply Ability | Strong production capacity |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | Pallet Conveyor System | Type | Grounding Roller Lifter |
|---|---|---|---|
| Lnner Width | 620≤W≤1520 (w = Pallet Width + 20) | Height | H Min ≥80, H Max≤1000 |
| Length | L=Pallet Length+300=1500 | Motor Brand | SEW(Europe), CPG(Taiwan) |
| High Light | 1200Kg Roller Pallet Conveyor,ASRS MHS Pallet Handling Conveyor,ASRS MHS Pallet Lift Conveyor |
||
Product Description

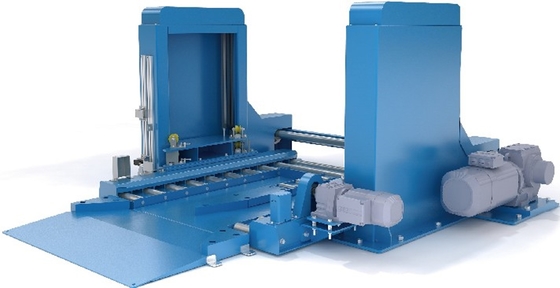

ASRS MHS Roller Pallet Conveyor Grounding Roller Lifter Multiple Lines
Payload 1200 Kg M Grounding Roller Lifter Pallet Conveyor System ASRS MHS
|
Standard
|
Description
|
|
W (mm) lnner width
|
620≤W≤1520 (w = pallet width + 20)
|
|
H (mm) Height
|
H min/H max (Low position / High position) H min ≥80, H max≤1000
|
|
L (mm) Length
|
L=Pallet length+300=1500
|
|
P (KW) Motor power
|
Lift: 0.4B(With Brake) Transfer : 0.37B (With Brake)
|
|
V (m/min) Speed
|
Lift: 10 Transfer: 12,16,18
|
|
Motor brand
|
SEW(Europe),CPG(Taiwan)
|
|
Bearing brand/Bearing block brand
|
HRB/TR,NSK/TR,SKF/TR,NSK/NSK
|
|
Conveyor payload (Kg/m)
|
Max 1200
|
|
Nonstandard models can be customized.
|
|
Features of roller conveyor equipment
- It is easy to connect with the process equipment, the connection method is simple and compact, and sometimes it can be directly used as the material input and output section of the process equipment.
- Two or several rows of roller conveyors can be arranged side by side to form a mixed roller conveyor for conveying large items. The space between the rollers is convenient for arranging various devices and equipment.
- The roller conveyors are easy to connect and filter. Multiple roller lines and other conveying equipment or special machines can be used to form a complex material conveying system and a split and confluence system to meet various process requirements.
- The roller conveyor has the advantages of simple structure, stable operation, high reliability, and easy use and maintenance.
