AGV Magnetic leading Amr Warehouse Mobile Robots Single Direction Towing
| Place of Origin | China |
|---|---|
| Brand Name | Kinte |
| Certification | ISO9001/FEM/ISO14001/OHSAS 18001 |
| Model Number | QY1200V1 |
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | Packed with plastic films and wrap with strips |
| Delivery Time | According to customer's requirement |
| Payment Terms | Negotiable |
| Supply Ability | Strong production capacity |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | QY1200V1 | Lead Method | Magnetic Leading |
|---|---|---|---|
| Travel Direction | Forward, Turn Left And Right, Bifurcation | Wireless | WIFI RF Web |
| Drive | Differential Speed Drive | ||
| High Light | Amr Warehouse Mobile Robots,DC24V Warehouse Mobile Robots,Magnetic Leading Amr Mobile Robot |
||
Product Description

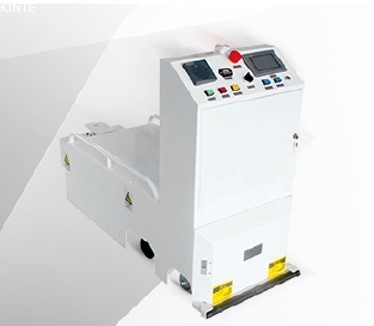

AGV Magnetic Leading Amr Warehouse Mobile Robots Single Direction Towing
Differential Speed Drive Single Direction Towing AGV Model QY1200V1 MHS ASRS
| Lead method | Magnetic leading |
| Travel direction | Forward, turn left and right, bifurcation |
| Wireless | WIFI RF web |
| Drive | Differential speed drive |
| Drive power | DC24V |
| Tow capacity | Carry 250kg at back, tow 500kg, 1000kg, 1500kg |
| Travel speed | 0-45m/min, or customerized |
| Turning radius | Min 500mm |
| Guide and stop precision | ±10mm |
| Working time | 24H |
| Climbing capacity | 3-5° |
| Charging | Manual/auto |
| Safety sensing range | ≤3m, adjustable, emergency braking distance less than 20mm |
| Alarm | Sound and light |
| Storage battery | plumbic acid/ lithium battery |
| Safety protection | Obstacle sensing + anti-collision |
| Design lifetime | ＞10 year |
