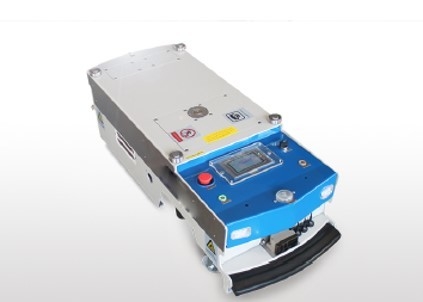

QF1100V2 AGV Amr Automated Mobile Robot Tow Capacity 500kg
| Place of Origin | China |
|---|---|
| Brand Name | Kinte |
| Certification | ISO9001/FEM/ISO14001/OHSAS 18001 |
| Model Number | QF1100V2 |
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | Packed with plastic films and wrap with strips |
| Delivery Time | According to customer's requirement |
| Payment Terms | Negotiable |
| Supply Ability | Strong production capacity |
Product Details
| Model | QF1100V2 | Tow Capacity | 500kg |
|---|---|---|---|
| Travel Direction | Forward, Turn Left And Right, Bifurcation | Drive | Steering Wheel Drive |
| Turning Radius | Min 500mm | ||
| High Light | AGV Amr Automated Mobile Robot,QF1100V2 Amr Automated Mobile Robot,QF1100V2 |
||
Product Description
QF1100V2 AGV Amr Automated Mobile Robot Tow Capacity 500kg
Tow Capacity 500kg Single Direction Latent AGV Model QF1100V2 MHS ASRS
| Lead method | Magnetic leading |
| Travel direction | Forward, turn left and right, bifurcation |
| Wireless | WIFI RF web |
| Drive | Steering wheel drive |
| Drive power | DC24V |
| Tow capacity | 500kg |
| Travel speed | 0-45m/min, or customerized |
| Turning radius | Min 500mm |
| Guide and stop precision | ±10mm |
| Working time | 24H |
| Climbing capacity | 3-5° |
| Charging | Manual/auto |
| Safety sensing range | ≤3m, adjustable, emergency braking distance less than 20mm |
| Alarm | Sound and light |
| Storage battery | plumbic acid/ lithium battery |
| Safety protection | Obstacle sensing + anti-collision |
| Design lifetime | ＞10 year |
