ASRS MHS Automated Warehouse System for Chemical Fiber Industry

Place of Origin China
Brand Name Kinte
Certification ISO9001/FEM/ISO14001/OHSAS 18001
Model Number Customized
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Packed with plastic films and wrap with strips
Delivery Time According to customer's requirement
Payment Terms Negotiable
Supply Ability Strong production capacity
Product Details
Rack Beam-type Storage 58P/h
Out Of Warehouse 315P/h Total Flow In & Out 370P/h
Stacker 9 Task Execution Yes
Layout Through-type Management Empty Pallet Warehousing Management And Goods Warehousing Management
High Light

ASRS MHS Automated Warehouse System

,

ISO9001 ASRS System Warehouse

,

FEM ASRS Warehouse Automation

Leave a Message
Product Description

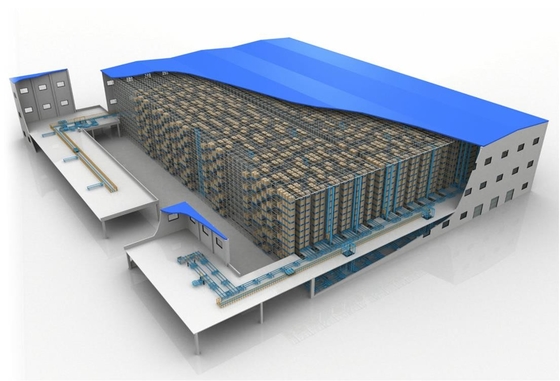

ASRS MHS Automated Warehouse System For Chemical Fiber Industry



Chemical Fiber Industry Intelligent Warehousing System ASRS MHS



The polyester filament ASRS is located in its main workshop. Polyester filament ASRS is a part of post-spinning processing in the main workshop. It is responsible for the inbound storage, outbound delivery and automatic processing of empty pallets of filament finished products. The operation of the ASRS is very frequent.



1. Layout of ASRS



The customer's requirements for production, use and other system connections, the ASRS is north-south, the positions of incoming and outgoing goods are arranged at both ends of the ASRS, the plane conveying system adopts a through-type layout, and the overall logistics direction is from the ASRS. From the south end (inbound end) to the north end (outbound end), the path is simple and the logistics is smooth.



2. Main facilities of the warehouse



1) High-rise shelves

2) Roadway stacker

3) Conveyor

4) Barcode reader

5) Computer terminal.



Design Specification Project Result
Beam-type rack, in the form of a stacker
Realize high-density storage of goods to ensure maximum space utilization. The storage end directly connects to the automatic packaging and palletizing production line to realize the automatic storage of finished products.

Passing 9 stackers in straight track mode

Realize the task execution of 9 lanes
Realize storage automation and intelligent operation, reduce the number of staff, and reduce labor intensity correspondingly, thereby saving labor costs for the enterprise
Empty pallet warehousing management and goods warehousing management
Storage 58P/h
Out of warehouse 315P/h
The total flow in and out of the warehouse is 370P/h
