ASRS Warehouse Automation Dexion Pallet Racking Storage Solution

Place of Origin China
Brand Name Kinte
Certification ISO9001/FEM/ISO14001/OHSAS 18001
Model Number Customized
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Packed with plastic films and wrap with strips
Delivery Time According to customer's requirement
Payment Terms Negotiable
Supply Ability Strong production capacity
Product Details
Model Dexion Pallet Racking Hole Type Diamond Hole Upright
Hole Pitch 76.2mm Distance Beam Connector With 3 Or 4 Hooks
Assembly Easy Storage Capacity High Density
High Light

ASRS Dexion Pallet Racking


76.2mm Dexion Pallet Racking


76.2mm ASRS Warehouse Automation

Leave a Message
Product Description

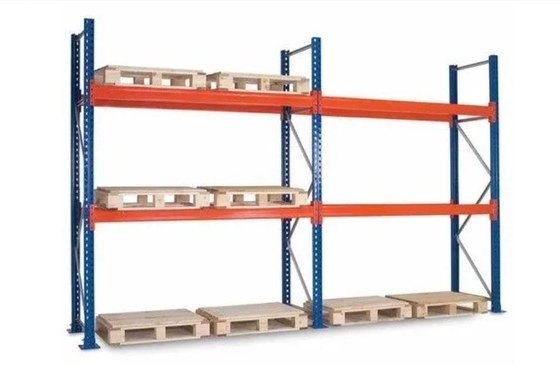

ASRS Warehouse Automation Dexion Pallet Racking Storage Solution


Economical Traditional Dexion Pallet Racking ASRS Racking System MHS




1. Dexion pallet racking is a kind of storage solution to store the goods with pallets, and it is a economical and traditional racking system. It is widely used in Australian market.

2. Hole type of the upright is diamond hole and hole pitch is 76.2mm distance.Beam connectors with 3 or 4 hooks.

3. It can be compatible with many handling equipment styles.

4. Easy to assembly and can be adjusted freely every 76.2mm hole pitch.

5. High density storage capacity ,maximizing storage space and minimizing storage costs.

6. Sunnyrack’s Dexion pallet racking strictly complies the AS4084-2012 standard.


Dexion pallet racking upright


Kinte provides the upright post with 80*60, 90*70,100*70,120*95 sections and thickness from 1.8mm to 2.75mm, to cover the loading requirements from 8t to 21t.


Dexion pallet racking box beam


Kinte supplies the box beams cover the requirements with different loadings. The height of beams from 80mm to 160mm high, and thickness of beam is 1.5mm ,1.8mm and 2.0mm.
