Carton Weight 50Kg Curved Conveyor System Customized ASRS Warehouse

Place of Origin China
Brand Name Kinte
Certification ISO9001/FEM/ISO14001/OHSAS 18001
Model Number Customized
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Packed with plastic films and wrap with strips
Delivery Time According to customer's requirement
Payment Terms Negotiable
Supply Ability Strong production capacity
Product Details
Model Belt Curved Conveyor Height H≥450
Effective Width 440, 535, 630, 725 (440≤W≤725) Turning Angle 30, 60, 90
Conveyor Speed 15≤V≤60 (m/min) Motor Power 0.75, 1.5 KW
High Light

50Kg Curved Conveyor System

,

ASRS Curved Conveyor System

,

50Kg Warehouse Conveyor System

Leave a Message
Product Description

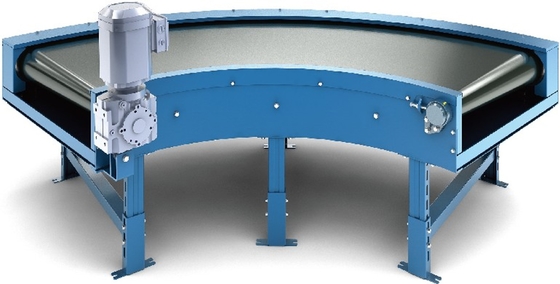

Carton Weight 50Kg Curved Conveyor System Customized ASRS Warehouse



Carton Weight 50 Kg M Belt Curved Conveyor Carton Conveyor System ASRS MHS





Standard





Description





H(mm)

Height





H≥450





W (mm)

Effective width





440, 535, 630, 725 (440≤W≤725)





θ(°)

Turning angle





30, 60, 90





V(m/min)

Conveyor speed





15≤V≤60





(Kw)

Motor power





0.75,1.5





(Kg/m) Carton weight





Max 50





Features



· Smooth conveying surface and simple structure



· Suitable for high-speed, heavy-duty or long-distance transportation



· It can be divided into straight line, turning, climbing, narrow-band bevel and other types



The conveyor belt is made of rubber, canvas, PVC, PU and other materials. In addition to the transportation of ordinary materials, it can also meet the transportation of materials with special requirements such as oil resistance, corrosion resistance and anti-static.



The special food-grade conveyor belt is adopted, which can meet the requirements of food, pharmaceutical, daily chemical, and other industries.
