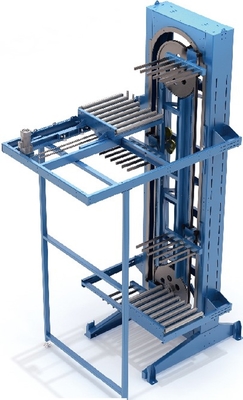

Chain Plate Vertical Sorter Carton Conveyor System Payload 50Kg

Place of Origin China
Brand Name Kinte
Certification ISO9001/FEM/ISO14001/OHSAS 18001
Model Number Customized
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Packed with plastic films and wrap with strips
Delivery Time According to customer's requirement
Payment Terms Negotiable
Supply Ability Strong production capacity
Product Details
Model Vertical Sorter Length L=220~550
Width ≤500 Height H≤L
Height Of Lower Entrance D≥750 Lifting Stroke E≤12
High Light

Vertical Sorter Carton Conveyor System

,

50Kg Carton Conveyor System

,

50Kg Rotating Pallet Conveyor

Leave a Message
Product Description

Chain Plate Vertical Sorter Carton Conveyor System Payload 50Kg



Chain Plate Payload 50 Kg M Vertical Sorter Carton Conveyor System ASRS MHS





Standard





Description





L (mm)

Length





L=220~550





W(mm)

Width





≤500





H(mm)

Height





H≤L





D(mm)

Height of lower entrance





D≥750





E(m)

Lifting stroke





E≤12





V(m/min)

Conveying speed





V≤30





(Kw)

Motor power





E≤4m, P=0.37B; 4m<E≤6m, P=0.55B; 6m<E≤8m,

P=0.75B; 8m<E≤10m, P=1.1B; 10m <E≤12m,P=1.5B;





(Kg/m) Chain plate payload





Max 50
