5000kg Rail Guided Vehicle

Place of Origin China
Brand Name Kinte
Certification ISO9001/FEM/ISO14001/OHSAS 18001
Model Number Customized
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Packed with plastic films and wrap with strips
Delivery Time According to customer's requirement
Payment Terms Negotiable
Supply Ability Strong production capacity
Product Details
Model 5000kg Non-standard Customized Shuttle Walking Speed 180m/min
Walking Acceleration 0.5m/s^2 Load 2000kg-5000kg
Design Height Customized On Demand Support Cold Storage Yes
High Light

5000kg Rail Guided Vehicle

,

ASRS Rail Guided Vehicle

,

ASRS RGV Vehicle

Leave a Message
Product Description

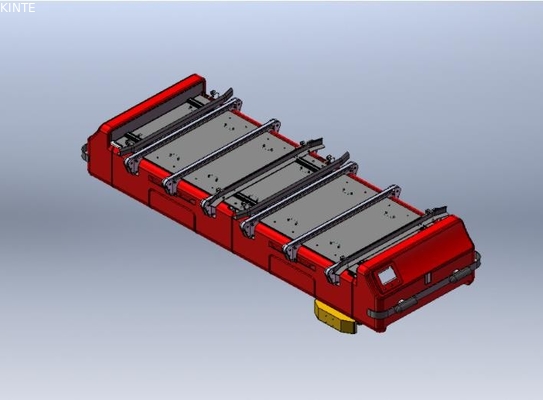

5000kg Rail Guided Vehicle



R4-FB5000 5000kg Non-standard Customized Shuttle Rail Guided Vehicle ASRS MHS



This RGV trolley independently developed by KINTE is a linear reciprocating type using microcomputer program-controlled technology, which can realize fully automatic walking, moving forward and backward; the roller is connected to the goods for conveying, moving materials and moving the warehouse, the maximum load can reach 5000KG, and the double forks can automatically retract from left to right. It can replace the manual forklifts and trolleys in the past; it can also be used for goods in, out, and transportation of three-dimensional warehouses with fixed overhead rails or ground rail routes.



Walking speed 180m/min
Walking acceleration 0.5m/s^2
Lifting speed -
Lifting acceleration -
Electrical standard Siemens PLC, laser/barcode ranging, SICK/P+F sensor, frequency conversion control
Options Video Surveillance, Vision Module, Voice Control, Energy Recovery
Load 2000kg-5000kg
Design height Customized on demand
Support cold storage Yes
Support multi-station/multi-deep position Yes



● Support the customization of super heavy-duty RGV shuttles, non-standard design of straight rails, curved rails, etc.;



● SEW motor is used by default;



● To ensure high precision under heavy load, use secondary positioning to ensure smooth docking.
