Payload 1200Kg Heavy Duty Pallet Conveyor Systems Double Chain

Place of Origin China
Brand Name Kinte
Certification ISO9001/FEM/ISO14001/OHSAS 18001
Model Number Customized
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Packed with plastic films and wrap with strips
Delivery Time According to customer's requirement
Payment Terms Negotiable
Supply Ability Strong production capacity
Product Details
Model Pallet Conveyor System Type Double Chain Conveyor
Distance Between Two Chains 550 Height H≥400
Length 951≤L≤6051
High Light

1200Kg Heavy Duty Pallet Conveyor Systems

,

Double Chain Pallet Conveyor System

,

1200Kg Double Chain Conveyor

Leave a Message
Product Description

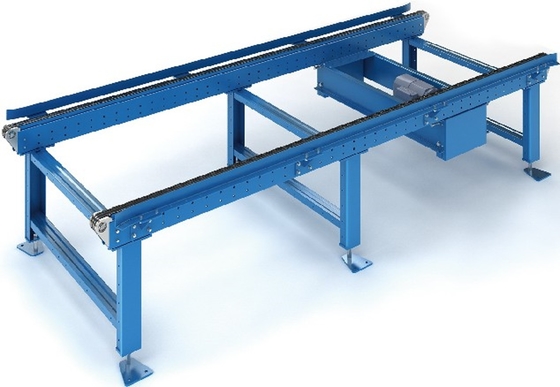

Payload 1200Kg Heavy Duty Pallet Conveyor Systems Double Chain



Payload 1200 Kg M Double Chain Conveyor Pallet Conveyor System ASRS MHS





Standard





Description





B (mm)

Distance between two chains





650≤B≤1750 (SEW motor, B = pallet width - 150)

550<B≤1750 (CPG motor, B = pallet width - 150)





H (mm) Height





H≥400





L (mm) Length





951≤L≤6051 (Change spacing every 75mm)





P (KW) Motor power





0.55(B)~0.75(B) (Optional motor with brake)





V (m/min) Conveying speed





12,16,18





Motor brand





SEW(Europe),CPG(Taiwan)





Bearing brand/Bearing block brand





HRB/TR,NSK/TR,SKF/TR,NSK/NSK





Conveyor payload (Kg/m)





Max≤1200





Nonstandard models can be customized.
