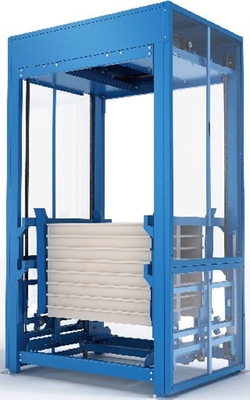

Payload 300Kg M Pallet Conveyor System Stacker And Dispenser

Place of Origin China
Brand Name Kinte
Certification ISO9001/FEM/ISO14001/OHSAS 18001
Model Number Customized
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Packed with plastic films and wrap with strips
Delivery Time According to customer's requirement
Payment Terms Negotiable
Supply Ability Strong production capacity
Product Details
Model Pallet Conveyor System Type Pallet Stacker And Dispenser
Pallet Width W≥800 Height H≥550
Pallet Height According To Design Pallet Number According To Design
High Light

300Kg Pallet Conveyor System

,

300Kg Pallet Stacker

,

300Kg Pallet Dispenser

Leave a Message
Product Description

Payload 300Kg M Pallet Conveyor System Stacker And Dispenser



Payload 300 Kg M Pallet Stacker And Dispenser Pallet Conveyor System ASRS MHS





Standard





Description





W (mm)

lnner width





W≥800 (W = Pallet width)





HS (mm)

Height





H≥550





PH (mm)

Pallet height





According to design





PN

Pallet number





According to design





P (KW) Motor power





Lift: 1.1B~2.2B(With Brake)

Fork: 0.18B(With Brake)





(m/min)

Lift speed





8





(sec/pallet)

Dispenser time





15s (For 1200mm length pallet and the speed of chain conveyor is 12m/min)





Motor brand





SEW(Europe),NORD(Europe)





Bearing brand/Bearing block brand





HRB/TR, NSK/TR, SKF/TR, NSK/NSK





Conveyor payload (Kg/m)





≤ 300





Provide detailed pallet drawings
