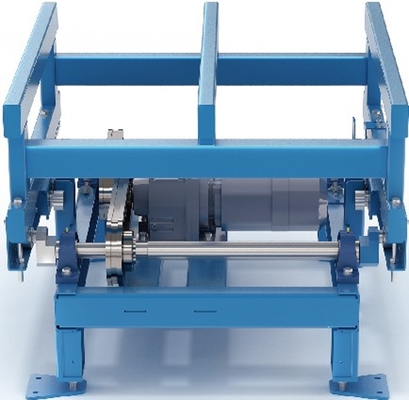

Pop Up Table Pallet Transfer Conveyor Gravity Roller Payload 1200Kg

Place of Origin China
Brand Name Kinte
Certification ISO9001/FEM/ISO14001/OHSAS 18001
Model Number Customized
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Packed with plastic films and wrap with strips
Delivery Time According to customer's requirement
Payment Terms Negotiable
Supply Ability Strong production capacity
Product Details
Model Pallet Conveyor System Type Pop Up Table
Lnner Width Pallet Width -150 (For Roller Conveyor) Frame Distance D=n*
High Light

Pop Up Table Pallet Transfer Conveyor

,

1200Kg Pallet Transfer Conveyor

,

1200Kg Pallet Gravity Roller Conveyor

Leave a Message
Product Description

Pop Up Table Pallet Transfer Conveyor Gravity Roller Payload 1200Kg



Payload 1200 Kg M Pop Up Table Pallet Conveyor System ASRS MHS





Standard





Description





W (mm)

lnner width





pallet width -330 (For chain conveyor)

pallet width -150 (For roller conveyor)





H (mm) Lifting stroke





H≥550/620(Low position / High position) Lifting distance according to design





D (mm) Frame distance





D=pallet width-100 (For chain conveyor)

D=n* <pallet width-100 (For roller conveyor)





Structure type





L (For chain conveyor)

G (For roller conveyor)





P (KW) Motor power





0.75B (With Brake)





Motor brand





SEW(Europe),CPG(Taiwan)





Bearing brand/Bearing block brand





HRB/TR,NSK/TR,SKF/TR,NSK/NSK





Lifting time





2.3s (Single trip)





Conveyor payload (Kg/m)





Max ≤ 1200





Nonstandard models can be customized.
