Laser Positioning Warehouse Shuttle System Maximum Load 1500KG

Place of Origin China
Brand Name Kinte
Certification ISO9001/FEM/ISO14001/OHSAS 18001
Model Number Customized
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Packed with plastic films and wrap with strips
Delivery Time According to customer's requirement
Payment Terms Negotiable
Supply Ability Strong production capacity
Product Details
Model Shuttle Carrier Maximum Speed 60 M/min
Power Supply Mode Lithium Battery Power Supply Working Time 8~10 Hours
Positioning Method Laser Positioning Positioning Accuracy 3mm
High Light

Laser Positioning Warehouse Shuttle System

,

1500KG Warehouse Shuttle System

,

1500KG Shuttle Pallet Racking

Leave a Message
Product Description

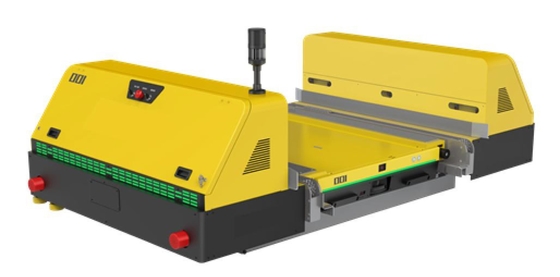

Laser Positioning Warehouse Shuttle System Maximum Load 1500KG



Shuttle Carrier Maximum load 1500KG Pallet Intensive Warehouse Shuttle System



A track perpendicular to the roadway is set at the corresponding position of each layer at the front end of the common shuttle racking system. There is a shuttle car that can shuttle back and forth, and the shuttle plate (ie, sub-car) can drive into this shuttle car. When transported to this shuttle, the second is that instant charging can be performed on this shuttle. This shuttle is called the shuttle carrier vehicle. The shuttle carrier vehicle can transport the goods out and transfer them to the elevator or conveyor. Such a system It is called the automatic vertical warehouse racking system of the shuttle carrier. At the same time, the shuttle carrier can also transfer the shuttle to different lanes. Such a high-density storage system is called a shuttle carrier ASRS.



Technical Parameter

Maximum speed 60 m/min
Power supply mode Lithium battery power supply
Working time 8~10 hours
Charging Online automatic charging during idle time
Positioning method laser positioning
Positioning accuracy 3mm
Maximum load 1500KG
Core component MOTEC motor
PLC

Siemens

Function

The shuttle car can realize the automatic deposit and withdrawal of goods, the standard shuttle car, 8-wheel walking
