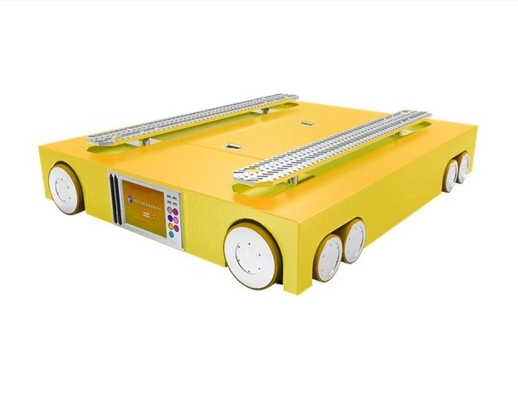

Narrow 1182*890*126mm Radio Shuttle System ASRS MHS Warehouse

Place of Origin China
Brand Name Kinte
Certification ISO9001/FEM/ISO14001/OHSAS 18001
Model Number Customized
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Packed with plastic films and wrap with strips
Delivery Time According to customer's requirement
Payment Terms Negotiable
Supply Ability Strong production capacity

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Model Narrow Four-way Shuttle Dimension 1182*890*126mm
Rated Load 1.2T Pallet Width 1100-1600mm
Tray Depth 800-1200mm Equipment Weight 400kg
High Light

ISO9001 Radio Shuttle System


1.2T Radio Shuttle Pallet Racking


1.2T Shuttle System Warehouse

Leave a Message
Product Description

Narrow 1182*890*126mm Radio Shuttle System ASRS MHS Warehouse


Rated Load 1.2T Narrow Four-way Shuttle Warehouse Shuttle System ASRS MHS


Basic specifications Dimension 1182*890*126mm
Rated load 1.2T
Pallet width 1100-1600mm
Tray depth 800-1200mm
Equipment weight 400kg
Performance Maximum speed 1.4m/s
Driving accuracy ≤2mm
Lifting time 4s
Reversal time 2.5s
Positioning accuracy ±2mm
Battery performance Battery Type LFP
Electricity 72V/25AH
Battery life 7-9H/1-2H
Charging method Automatic charging
Operating temperature -10~45℃
Charging temperature 0~45℃



Features of the four-way shuttle


1. Storage double cycle operation. In one processing cycle, four units can be transported at the same time, and the operation efficiency is high.


2. The height of the system can reach 24 meters, occupying a small space.


3. It is an intelligent handling equipment that integrates automatic handling, unmanned guidance, and intelligent control.



Four-way shuttle advantages



1. Compared with the traditional multi-layer shuttle racking system, the four-way shuttle racking system has more advantages in terms of safety and stability. It is not only suitable for low-flow and high-density storage, but also suitable for high-flow and high-density storage selection. Better meet the needs of different customers.


2. In terms of the overall cost of the system, since the cost of ordinary multi-storey shuttles is closely related to the number of lanes, under the condition of increasing the number of orders and not increasing the inventory, each additional lane will increase the corresponding cost of these systems, while the four-way shuttle system will increase the corresponding cost. Just increase the number of shuttles and the overall cost is lower.
