Rated load 2.0T Warehouse Shuttle System ASRS MHS Shuttle Robot

Place of Origin China
Brand Name Kinte
Certification ISO9001/FEM/ISO14001/OHSAS 18001
Model Number Customized
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Packed with plastic films and wrap with strips
Delivery Time According to customer's requirement
Payment Terms Negotiable
Supply Ability Strong production capacity
Product Details
Model Large Four-Way Shuttle Robot Dimension 1305*1380*215mm
Rated Load 2.0T Pallet Width 600-2400mm
Tray Depth 800-1600mm Body Thickness 220mm
High Light

2.0T Warehouse Shuttle System

,

2.0T Pallet Shuttle Racking

,

ASRS MHS Shuttle Robot

Leave a Message
Product Description

Rated Load 2.0T Warehouse Shuttle System ASRS MHS Shuttle Robot



Large Four-Way Shuttle Robot Warehouse Shuttle System ASRS MHS

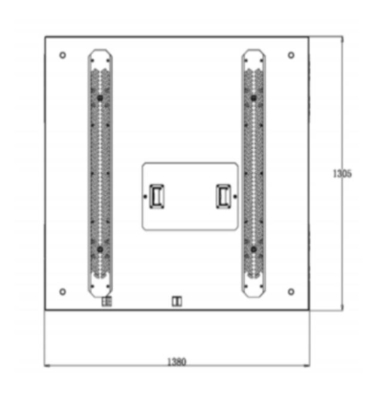

Basic specifications Dimension 1305*1380*215mm
Rated load 2.0T
Pallet width 600-2400mm
Tray depth 800-1600mm
Body thickness 220mm
Equipment weight 640kg
Performance Maximum speed 1.2m/s
Driving accuracy ≤2mm
Lifting time 4s
Reversal time 4s
Positioning accuracy ±2mm
Battery performance Battery Type LFP
Electricity 48V/40AH
Battery life 5-6H/1-2H
Charging method Automatic charging
Operating temperature -10~50℃
Charging temperature 0~45℃
