ASRS MHS Warehouse Shuttle System Four Way Back And Forth

Place of Origin China
Brand Name Kinte
Certification ISO9001/FEM/ISO14001/OHSAS 18001
Model Number Customized
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Packed with plastic films and wrap with strips
Delivery Time According to customer's requirement
Payment Terms Negotiable
Supply Ability Strong production capacity

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Model Four-Way Shuttle Height 160 Mm
Length 1050 Mm Width 950 Mm
Net Weight 300KG Load 1000 KG
High Light

MHS Warehouse Shuttle System


ASRS Warehouse Shuttle System


ASRS Pallet Shuttle System

Leave a Message
Product Description

ASRS MHS Warehouse Shuttle System Four Way Back And Forth


Four-way Shuttle Load 1000KG Warehouse Shuttle System ASRS MHS

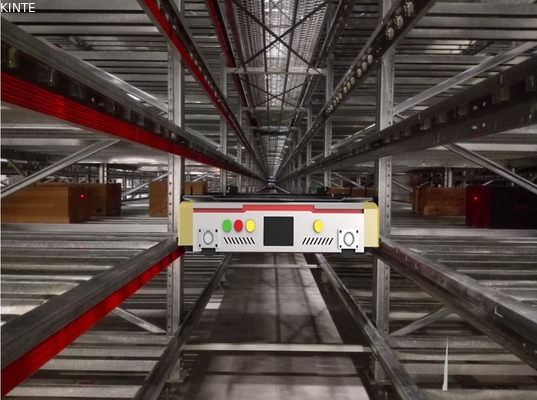

The four-way shuttle shuttles back and forth in four directions inside the shelf, connecting the pallet from the outside of the warehouse to the inside and from the inside of the warehouse to the outside of the warehouse, so as to realize the function of picking and placing goods and completing the in and out of the warehouse.


Through its own mutual rescue function, position sensing function, low battery warning function, automatic charging function, etc., the four-way shuttle provides the possibility for the realization of automation and intelligence in the library.


  • Four-way shuttle (height 160, length 1050, width 950) mm, net weight 300KG
  • Battery capacity 50HA
  • Load speed 60-90m/min, acceleration 0.4m/s²
  • Load 1000KG
  • The equipment effective time utilization rate can reach 95%
  • Location awareness function
  • Mutual rescue function
  • Low battery warning function
  • Automatic charging function
