Intensive Warehouse Shuttle System Carrier Maximum Speed 180m Per Min

Place of Origin China
Brand Name Kinte
Certification ISO9001/FEM/ISO14001/OHSAS 18001
Model Number Customized
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Packed with plastic films and wrap with strips
Delivery Time According to customer's requirement
Payment Terms Negotiable
Supply Ability Strong production capacity
Product Details
Model Warehouse Shuttle Carrier Maximum Speed 180 M/min
Power Supply Mode External Sliding-touch Power Supply Positioning Mode Bar Code Positioning
Positioning Accuracy 3mm Maximum Load 1500KG (excluding Sub Cars)
High Light

180m Per Min Warehouse Shuttle System

,

3mm Warehouse Shuttle System

,

3mm Warehouse Shuttle Carrier

Leave a Message
Product Description

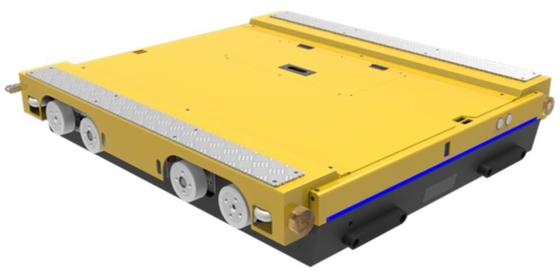

Intensive Warehouse Shuttle System Carrier Maximum Speed 180m Per Min



Shuttle Carrier Maximum Speed 180 m min Pallet Intensive Warehouse Shuttle



The shuttle carrier ASRS realizes fully automatic operation of the shuttle, shuttle carrier, hoist, conveyor, and other equipment through the WMS/WCS control system, cancels the forklift channel and auxiliary space, and greatly improves the high density of materials in the warehouse. Storage, saves the time for forklifts to access materials, reduces the working time and intensity of workers, and meets customers' requirements for the combination of high-density storage of materials and high-efficiency access.



Technical Parameter



Maximum speed 180 m/min
Power supply mode external sliding-touch power supply
Positioning mode bar code positioning
Positioning accuracy 3mm
Maximum load 1500KG (excluding sub cars)
Safety device sector sensor
Communication method wireless wifi
Operating noise ﹤75dB(A)
Core components SEW motor and SEW servo drive
PLC Siemens
Electric

Schneider Low Voltage Electric
